Product Details:
Manufacturer : Endress+Hauser
Product No. : FTI55-BAC2AHJ43A1A
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Parameter Item | Standard Value of FTI55-BAC2AHJ43A1A |
|---|---|
| Full Model Code | Endress+Hauser FTI55-BAC2AHJ43A1A |

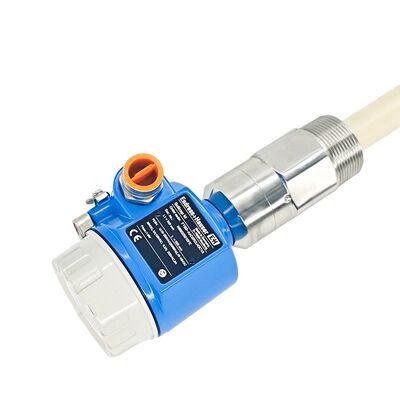

| Product Series | Solicap M FTI55 Capacitive Point Level Switch |
| Measuring Principle | Capacitance shift detection (rod-to-tank wall) |
| Measuring Frequency | 500 kHz |
| Capacitance Sensing Span | 5 pF ~ 1600 pF |
| Supported Bulk Solid Dielectric Constant | DK ≥ 2 |
| Electronic Insert Model | FEI55 |
| Signal Output Type | 8/16 mA two-wire DC switch mode |
| Supply Voltage Range | DC 11 V ~ 36 V |
| Power Consumption | ≤ 1 W |
| Status Indicator | Green power LED, Yellow switching LED, Red fault LED |
| Calibration Mode | Local single-button auto-calibration |
| Diagnostic Function | Permanent circuit self-test with fault signal output |
| Functional Safety Rating | SIL2 / SIL3 per IEC 61508 |
| Surge Protection | Dual-stage anti-static discharge protection for silo environments |
| Galvanic Isolation | Full isolation between wetted probe and electronic circuit |
| Parameter Item | Standard Value of FTI55-BAC2AHJ43A1A |
|---|---|
| Wetted Material | 316L stainless steel rod + PFA full insulation coating |
| Standard Probe Length | Customized length matching BAC order variant code |
| Inactive Dead Zone Length | 100 mm minimum |
| Process Connection | Standard ISO thread (BAC variant threaded process fitting) |
| Max Allowable Lateral Torque Load | 300 Nm |
| Process Temperature Range | -50 °C ~ +180 °C (-58 °F ~ +356 °F) |
| Max Process Overpressure | 25 bar (362 psi), full vacuum compatible |
| Ambient Operating Temperature | -40 °C ~ +70 °C |
| Storage & Transport Temperature | -50 °C ~ +85 °C |
| Housing Material | Die-cast aluminum F17 housing |
| Protection Class | IP66 / NEMA4X |
| Permitted Relative Humidity | 5% ~ 95% RH, non-condensing |
| Vibration Compliance | IEC 60068-2-6 industrial vibration standard |
| Shock Resistance Standard | IEC 60068-2-27 mechanical shock test |
| Global Certifications | ATEX, IECEx, CSA, FM, SIL2/SIL3, CRN |
| Explosion Hazard Zones | Zone 20, Zone 21, Zone 22 dust hazardous areas |
| Mounting Orientation | Horizontal or vertical installation on silo wall / tank roof |
| Cable Entry Standard | M20 × 1.5 cable gland port |
