รายละเอียดสินค้า:
การชำระเงิน:
|
| พิมพ์: | กระบอกลม | ความกว้างของที่อยู่อาศัย: | 44 มม |
|---|---|---|---|
| ตำแหน่งการติดตั้ง: | ปฐมนิเทศใด ๆ | วัสดุซีล: | NBR (ยางไนไตรล์) |
| อัตราการไหลที่กำหนด (DIN 1343): | 1,600 ลิตร/นาที | ช่วงการควบคุมแรงดัน: | ช่วงการควบคุมแรงดัน |
| เน้น: | Festo compact cylinder ADNGF-25-25-P-A,Guided compact cylinder Festo,Festo cylinder with guided design |
||
Description:

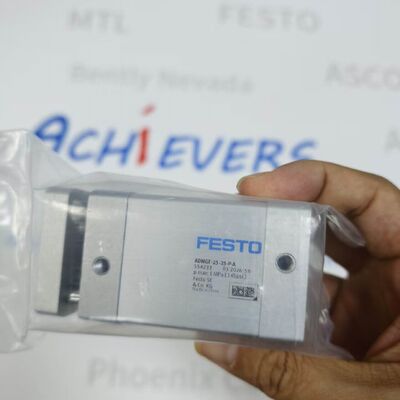

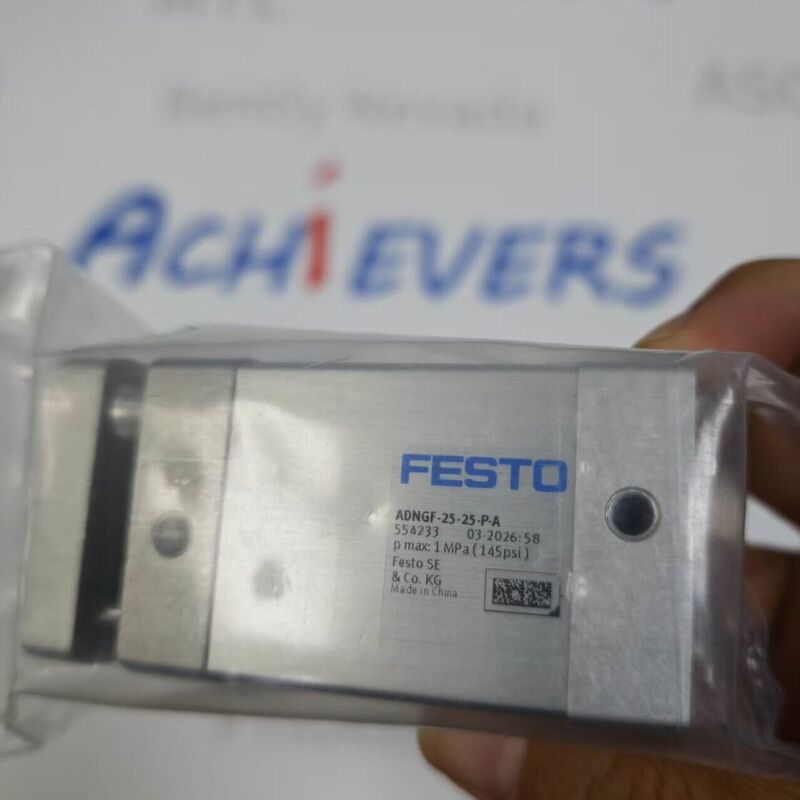

Manufacturer : Festo
Product No. : ADNGF-25-25-P-A
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
| Specification Item | Technical Parameter | Standard & Functional Remark |
|---|---|---|
| Full Model Code | ADNGF-25-25-P-A | FESTO ADNGF series guided cylinder SKU |
| Official FESTO Part No. | 554233 | Unique factory component identifier |
| Brand Manufacturer | FESTO | Global industrial pneumatic automation brand |
| Operation Type | Double acting | Extend & retract powered by compressed air |
| Piston Bore Diameter | 25 mm | Standard ISO 21287 size specification |
| Rated Stroke Length | 25 mm | Fixed single stroke travel range |
| End Cushioning Type | Elastic cushion rings on both ends (Suffix P) | No air adjustment required, low impact noise |
| Position Detection Support | Built-in slots for magnetic proximity sensors (Suffix A) | Real-time stroke limit signal feedback |
| Operating Pressure Range | 1 bar ~ 10 bar (0.1 MPa ~ 1 MPa) | Standard industrial compressed air system |
| Theoretical Thrust (6 bar / 0.6 MPa) | 295 N | Extending forward force output |
| Theoretical Pull Force (6 bar / 0.6 MPa) | 247 N | Retracting backward force output |
| End Position Max Impact Energy | 0.3 J | Elastic cushion load absorption capacity |
| Pneumatic Port Thread Size | M5 | Compact miniature air connection interface |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] | Dry, filtered air; lubrication optional |
| Moving Internal Mass | 99 g | Piston + rod + yoke moving assembly weight |
| Specification Item | Technical Parameter | Installation & Environmental Remark |
|---|---|---|
| Complete Unit Net Weight | 279 g | Lightweight aluminum alloy construction |
| Anti-Torsion Structure | Dual parallel guide rods + connecting yoke | Self-guiding, no external slide accessories |
| Allowed Mounting Position | Any orientation | Horizontal, vertical, inclined installation supported |
| Operating Ambient Temperature | -20 °C ~ +80 °C | Full performance without pressure derating |
| Storage Temperature Range | -40 °C ~ +90 °C | Warehouse & transit temperature tolerance |
| Corrosion Resistance Class (CRC) | CRC 2 | Moderate humidity & dust factory environments |
| LABS / PWIS Compliance | VDMA24364-B1/B2-L | Oil-free sealing for food & paint processing lines |
| Main Barrel Material | Smooth hard-anodized wrought aluminum alloy | Low friction, anti-wear surface |
| Piston Rod & Guide Rod Material | High-alloy stainless steel | Anti-rust, high linear precision |
| Seal Material | TPE-U (PUR) elastomer | Low friction, long service life elastomer seals |
| End Cover & Flange Material | Anodized aluminum alloy | RoHS compliant non-toxic metal housing |
| Protection Grade | IP30 | Dust-proof for standard indoor automation cabinets |
| Compliance Standard | ISO 21287, RoHS EU directive | Global mechanical & environmental norms |
Brand
Festo is a German automation company based in Esslingen am Neckar, Germany.[1] Festo produces and sells pneumatic and electrical control systems and drive technology for factories and process automation. Festo Didactic also offers industrial education and consultation services and is one of the sponsors and partners of the WorldSkills Mechatronics Competitions. Sales subsidiaries, distribution centres and factories of Festo are located in 61 countries worldwide. The company was named after its founders Albert Fezer and Gottlieb Stoll.
Achievers Automation Limited has more than 14 years experience in the market of Industrial Automation, specialized in reselling factory sealed Probe, Sensor, DCS,isolator barrier, HMI, PLC,Adapter,Profibus connector and cable from Brands as BENTLY NEVADA, E+H, MTL, AB, Pepperl+Fuchs, YOKOGAWA, ASCO, Schneider, Lenze, Pro-face, Mitsubishi, Omron, Lenze, Delta, IFM etc. If you have any request, please do not hesitate to contact us.
Below are the TOP BRANDS we handle in the past 14 years:
FAQ of Achievers
Q:Are the Products Genuine OEM Units?
A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.
Q:How will you arrange shipment?
A: We can arrange shipment based on your request. We have cooperated forwader who can arrange shipment via FedEx, DHL,TNT with good price.
Q:What is the warranty of goods?
A: One-year Warranty.
