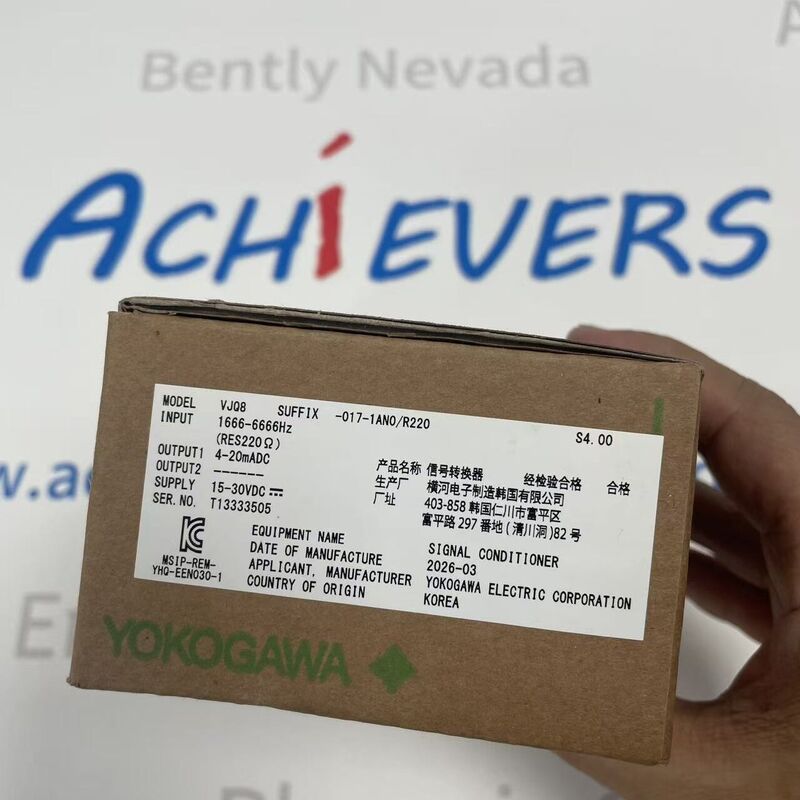

Product Details:
Manufacturer : YOKOGAWA
Product No. : VJQ8-017-1AN0R220
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
Detail:
|
Specification Category
|
Details
|
|---|---|
|
Model
|
VJQ8-017-1AN0R220
|
|
Brand
|
Yokogawa Electric Corporation
|
|
Product Type
|
High-Function Pulse to Analog Converter
|
|
Input Signal
|
2-wire type ON/OFF contact, voltage pulse, current pulse (transmitter power supply available); 3-wire type voltage pulse (transmitter power supply available)
|
|
Input Frequency Range
|
0.1 Hz ≤ F₁₀₀ ≤ 100 kHz; 0 Hz ≤ F₀ ≤ F₁₀₀ (F₀ = 0% of input frequency, F₁₀₀ = 100% of input frequency)
|
|
Input Filter
|
Approx. 10 ms time constant (on/off selectable)
|
|
Conversion Mode
|
Selectable from F/V conversion or pulse integration
|
|
Output-1 Signal
|
4 to 20 mA DC or 1 to 5 V DC (configurable)
|
|
Output-2 Options
|
DC voltage signal, DC current signal, RS-485 communication, or 2 relay contact alarm outputs
|
|
Insulation Voltage
|
2000V AC (between input, output, power supply, and ground mutually)
|
|
Power Supply
|
AC 100~240V or DC 15~30V
|
|
Accuracy
|
±0.1% of span
|
|
Parameter Name
|
Specifications
|
|---|---|
|
Mounting Type
|
DIN rail mounting, VJ mounting, or wall mounting
|
|
Dimensions (H×W×D)
|
76mm × 29.5mm × 124.5mm
|
|
Operating Temperature Range
|
-10°C to +55°C (no condensation)
|
|
Storage Temperature Range
|
-25°C to +70°C (no condensation)
|
|
Relative Humidity
|
5% to 90% RH (non-condensing)
|
|
Power Dissipation
|
3.3W (24VDC & 110VDC); 6.2VA (100VAC); 8.1VA (200VAC)
|
|
Connector Type
|
M3 screw terminal, plug-in connector
|
|
Parameter Setting Method
|
PC (with VJ77 parameter setting tool) or handy terminal (JHT200, etc.)
|
|
Shunt Resistor
|
Built-in 220Ω shunt resistor (for current pulse input)
|
|
Communication Protocol
|
RS-485 Modbus ASCII/RTU (2-wire half-duplex)
|
